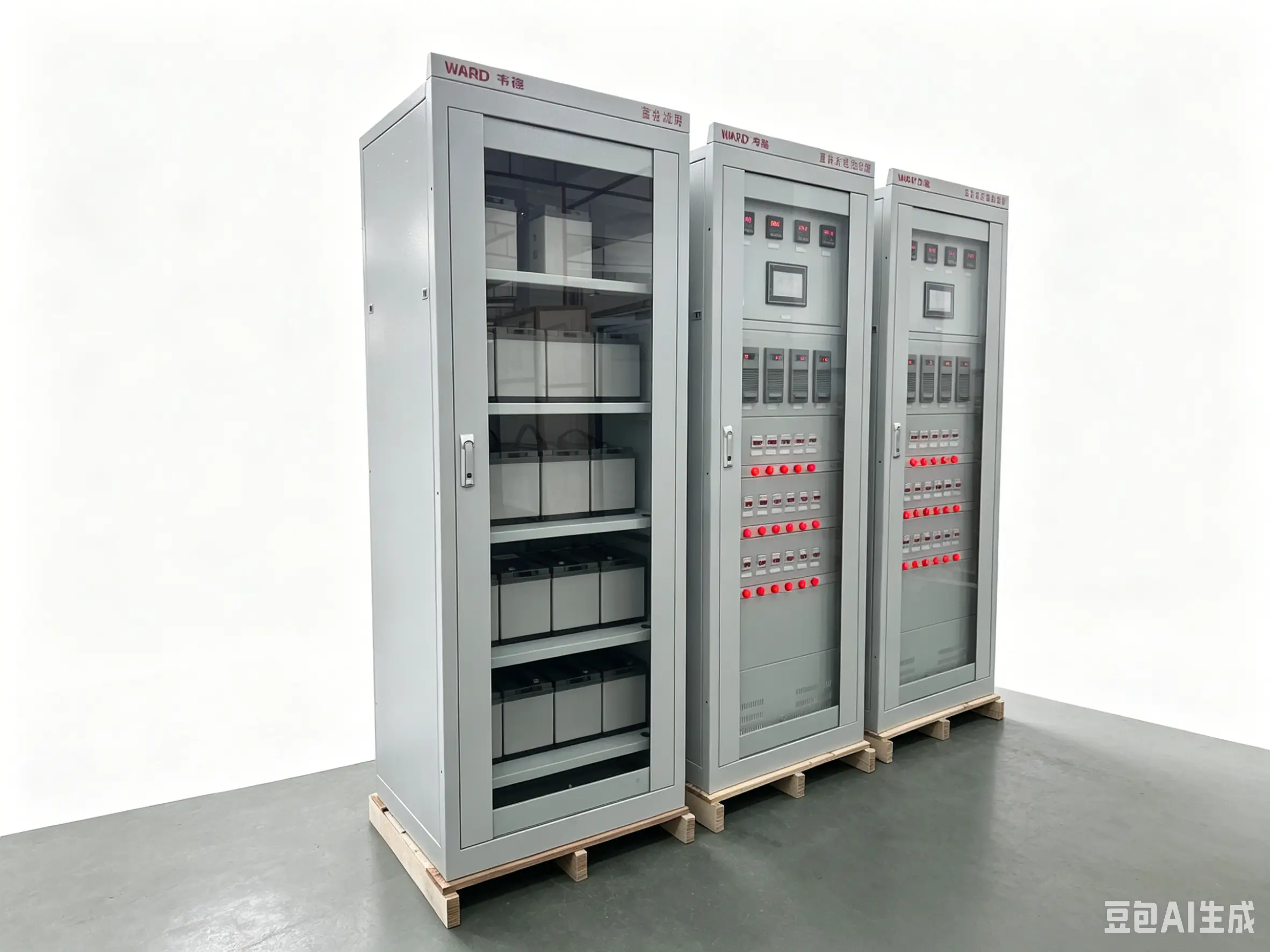

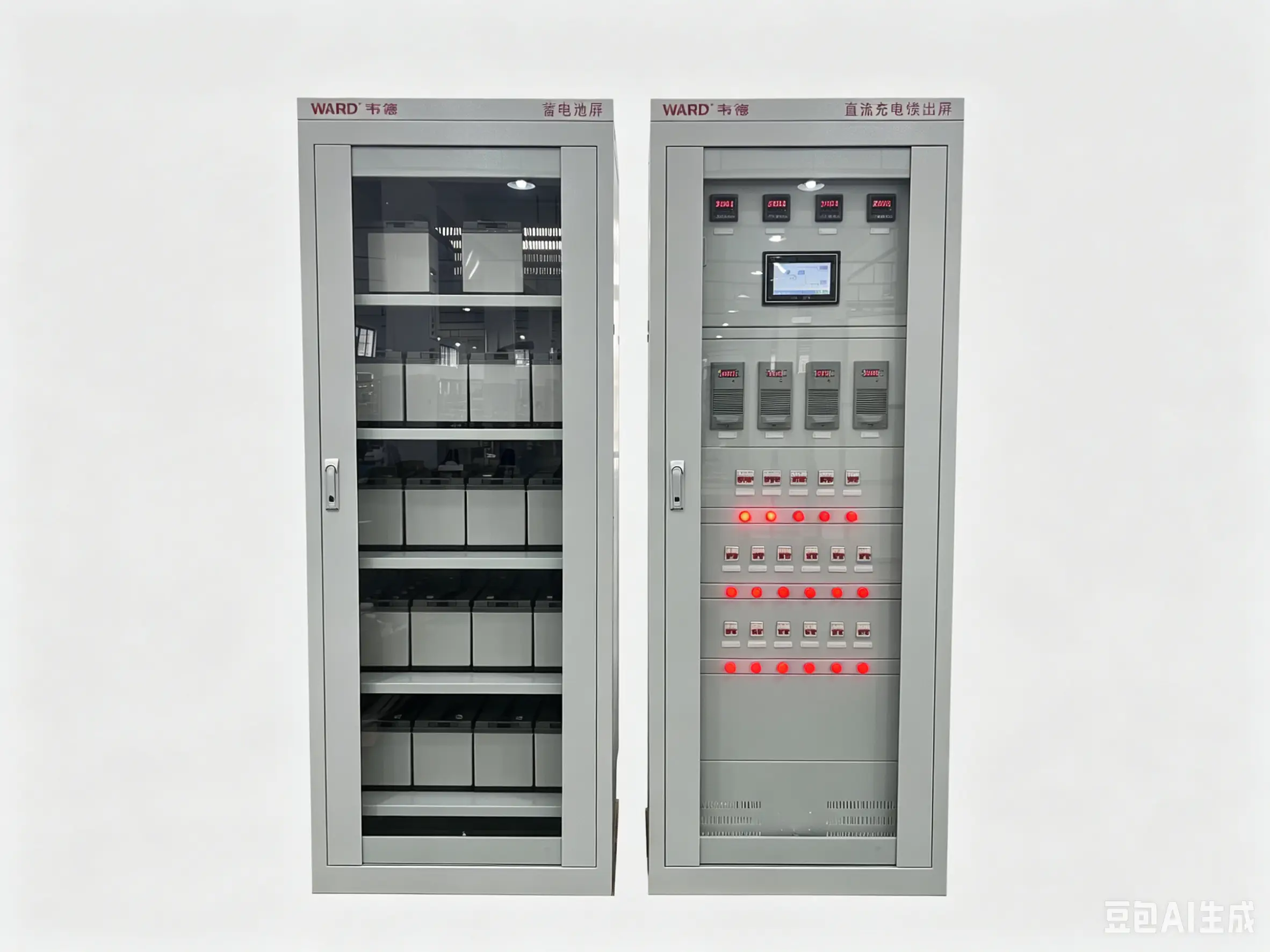

Cabinets: Two units (including one integrated charging and feeder panel, and one battery panel), 800 × 600 × 2260 mm, color RAL7035
Output Circuits: 5 control circuits (16A/20A), 5 closing circuits (32A)
Charging Modules: 7A × 2 units / 10A × 2 units
Monitoring Module: 1 unit
Integrated Measurement Module: 1 unit (including insulation monitoring and battery inspection)
Battery: 65AH × 18 blocks / 100AH × 18 blocks
Supports dual 380V AC inputs (automatic transfer switching)
The WD-GZDW Series DC Power Supply System consists of intelligent high-frequency switching power supply modules, a monitoring unit, a voltage reduction module, a digital input module, an integrated measurement module, an AC/DC detection module, an insulation monitoring module, a battery inspection module, storage batteries, feeder circuits, and other components.
It offers numerous advantages, including high voltage and current regulation accuracy, fast response speed, low noise, a high degree of intelligence, convenient operation and maintenance, and high reliability. The system can communicate with a host computer (supervisory system) and easily implement the “four remote” functions (remote measurement, remote signaling, remote control, and remote adjustment). It represents an ideal generation of DC power supply equipment.
The system is suitable for use as a DC power source for control, signaling, protection, telecommunication, lighting, and other applications in power plants, hydroelectric stations, substations, and switching stations within the electric power system. It is widely used in sectors such as electric power, petrochemicals, mining, electrified railways, metallurgy, machinery, and high-rise buildings.
