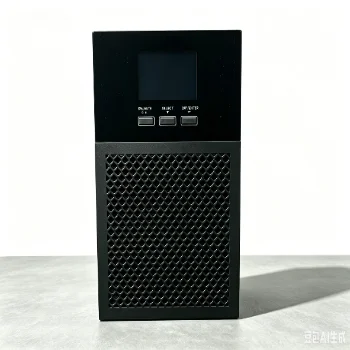

Compact High-Frequency Tower UPS

Category UPS

True Online Double Conversion
Microprocessor Control Ensures High Reliability
Input Power Factor Correction
Output Power Factor Up to 0.8
Wide Mains Input Range (110V – 300V)
High-Efficiency Variable Frequency Conversion Mode
ECO Mode for Effective Energy Saving
Compatible with Generator Input
Equipped with RS232 interface and card slot,standard domestic input & output;SNMP card and Modbus card are optional

Product detail:

Model	1K	2K	3K
Phase	Single Phase with Ground	Single Phase with Ground	Single Phase with Ground
Capacity	1000 VA / 800 W	2000 VA / 1600 W	3000 VA / 2400 W
Input
Input Voltage	200/208/220/230/240 VAC	200/208/220/230/240 VAC	200/208/220/230/240 VAC
Voltage Range	110 – 300 VAC @ 50% load or 160 – 280 VAC @ 50% load	110 – 300 VAC @ 50% load or 160 – 280 VAC @ 50% load	110 – 300 VAC @ 50% load or 160 – 280 VAC @ 50% load
Frequency Range	40 Hz – 70 Hz	40 Hz – 70 Hz	40 Hz – 70 Hz
Power Factor	≥ 0.99 @ 100% load	≥ 0.99 @ 100% load	≥ 0.99 @ 100% load
Output
Output Voltage	200/208/220/230/240 VAC	200/208/220/230/240 VAC	200/208/220/230/240 VAC
Voltage Regulation (Battery Mode)	± 1%	± 1%	± 1%
Frequency Range (Sync Tracking Range)	47–53 Hz or 57–63 Hz	47–53 Hz or 57–63 Hz	47–53 Hz or 57–63 Hz
Frequency Range (Battery Mode)	50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz	50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz	50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Crest Factor	3:1	3:1	3:1
Total Harmonic Distortion (THD)	≤ 3% (linear load) or ≤ 6% (non-linear load)	≤ 3% (linear load) or ≤ 6% (non-linear load)	≤ 3% (linear load) or ≤ 6% (non-linear load)
Transfer Time
AC to DC	None (zero transfer)	None (zero transfer)	None (zero transfer)
Inverter to Bypass	4 ms (under standard conditions)	4 ms (under standard conditions)	4 ms (under standard conditions)
Waveform (Battery Mode)	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Efficiency
Line Mode	89%	89%	89%
Battery Mode	86%	86%	86%
